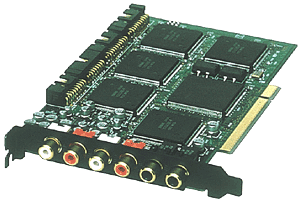

2 x DS2416 Mixing Card

MIXER
The DS2416's mixer comes complete with literally all the professional effects and processing features you need. Relying on its own on-board processing power, all mixer functions are available simultaneously to provide unprecedented range and performance. Features include...
• 24 channel, 32-bit digital mixer
• 10 bus outputs and 6 aux sends
• 4-band parametric EQ on each input and stereo out
• Dynamics processors on each input and stereo out
• Two effects processors equal in quality to the Yamaha REV500
• Channel delay on 20 channels
• Comprehensive metering
• Digital cross-patching for channel inputs and outputs
• 2 channel analog input (20-bit AD) and output (20-bit DA)
• Stereo DIGITAL (coaxial) input and output
• Optional interface provides multi-channel analog & digital I/O

RECORDER
The DS2416's multi-track digital recorder is extremely powerful in its own right, including a built-in audio-streaming engine. Features include...
• 8-track simultaneous recording with up to 32-bit resolution
• 16-track playback from hard disk with up to 32-bit resolution
• Sample-accurate synchronization between tracks
• Signals to and from recorder and mixer remain in digital domain
• Synchronization to outside sources via the control software

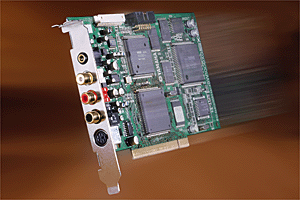

1 x SW1000XG Synth Card

Multi-channel hard disk recording capability is combined with 20 MB class wavetable, multiple effects busses, 7 independent 24 bit effect processors, channelized EQs and more right on a single PCI card.

20 MB Wave ROM
1,267 plus 256 (if PLG100-VL is fitted) voices, and 46 drum kits in total.

32 Parts Multi Timbral and 64 Max Polyphony
32 parts internal plus 16 parts external MIDI. Maximum of 64 notes simultaneous polyphony.

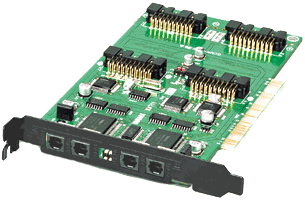

1 x AX16-AT Digital Interface Card

The AX16-AT is a PCI card which allows the DSP Factory to be easily interfaced with a wide variety of professional audio devices including digital multitrack recorders, external audio converters, and digital recording consoles.
Providing two pairs of ADAT-format optical connectors for transferring 16 tracks of digital audio to and from the DS2416 audio card at resolutions as high as 24-bit.

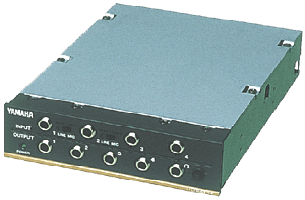

2 x AX44 Audio Expansion Unit

The AX44 installs into the drive bay of a PC tower and provides four quarter-inch analog inputs - two of which can accommodate microphones - and four quarter-inch analog outputs. There's also a stereo headphone jack. Two AX44 units can be connected to one DS2416 card to provide eight additional analog inputs and outputs.
